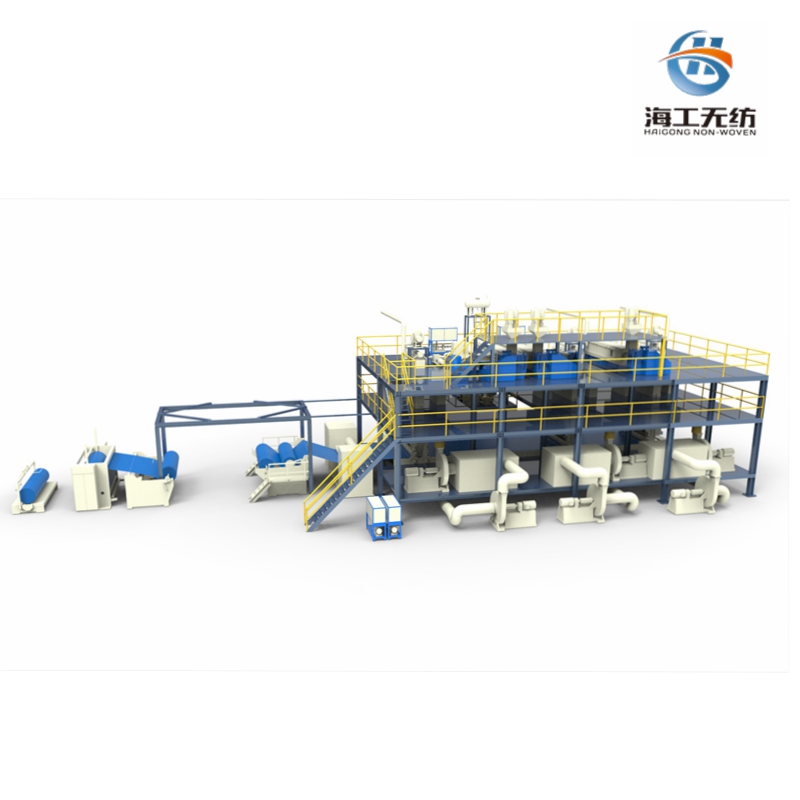

SMS Medical Nonwoven Fabric Making Machine
product detail
|
Model |
Effective width |
Daily capacity |
Speed |
Spinning system |
GSM Range |
Machine dimension Length*Width*Height |
|
HG-1600SMS |
1600MM |
10000Kg |
400M/Min |
Spunbond/ Meltblown/ Spunbond |
8-80 |
40*15*11meter |
|
HG-2400SMS |
2400MM |
14000Kg |
40*18*11meter |
|||
|
HG-3200SMS |
3200MM |
18000Kg |
40*25*11meter |
Main production process:
1. Spunbonding process: This process involves the extrusion of polymer through spinnerets, which forms continuous filaments. Then, these filaments are laid on a moving belt or drum in a random manner, which is then bonded together by heat.
2. Meltblown process: In this process, the polymer is melted and extruded through fine nozzles, which forms microfibers. These microfibers are then collected on a moving belt or drum, which is then bonded together by heat.
3. Bonding process: This process involves the bonding of spunbond and meltblown layers. The fabric is passed through a calender machine, where heat and pressure are applied simultaneously, which helps in bonding the layers.
4. Winding process: Finally, the fabric is wound onto rolls, which can be further processed as per the requirement.
Why Choose Us
20+
HG Nonwoven fabric making machines have already successfully exported to 20+ countries and regions which made HG nonwoven famous and won the good reputation.
300+
HG Nonwoven have already successfully installed more than 300+ nonwoven fabric production lines around the world and keeps growing in good growth rate every year.
