01
Polypropylene Spunbond Non Woven Fabric Making Machine
HG Spunbond Nonwoven Fabric Making Machine Technical Specification
All Types of Nonwoven Fabric Production Lines to Elevate Your Business
| Model |
HG-1600mm |
HG-2400mm |
HG-3200mm |
| technology |
Spun bond non woven making |
||
| Spinning beam |
S/SS/SSS |
||
| Raw material |
Polypropylene |
||
| Output(ton) |
5/9/14ton |
7/13/18ton |
10/16/24ton |
| Speed (m/min) |
200/350/400 m/min |
||
| GSM range(g/sqm) |
10-200 g/sqm |
||
| Filament Denier |
1.6-2.0 denier |
||
| Model |
HG-1600mm |
HG-2400mm |
HG-3200mm |
| technology |
Spun bond and Melt blown non woven making |
||
| Spinning beam |
SMS/SMMS/SSMS/SSMMS |
||
| Raw material |
Polypropylene |
||
| Output(ton) |
12/13/13/16ton |
16/18/18/22ton |
20/22/22/30ton |
| Speed (m/min) |
400/500/500/500 m/min |
||
| GSM range(g/sqm) |
8-100 g/sqm |
||
| Filament Denier |
1.6-2.0 denier |
||

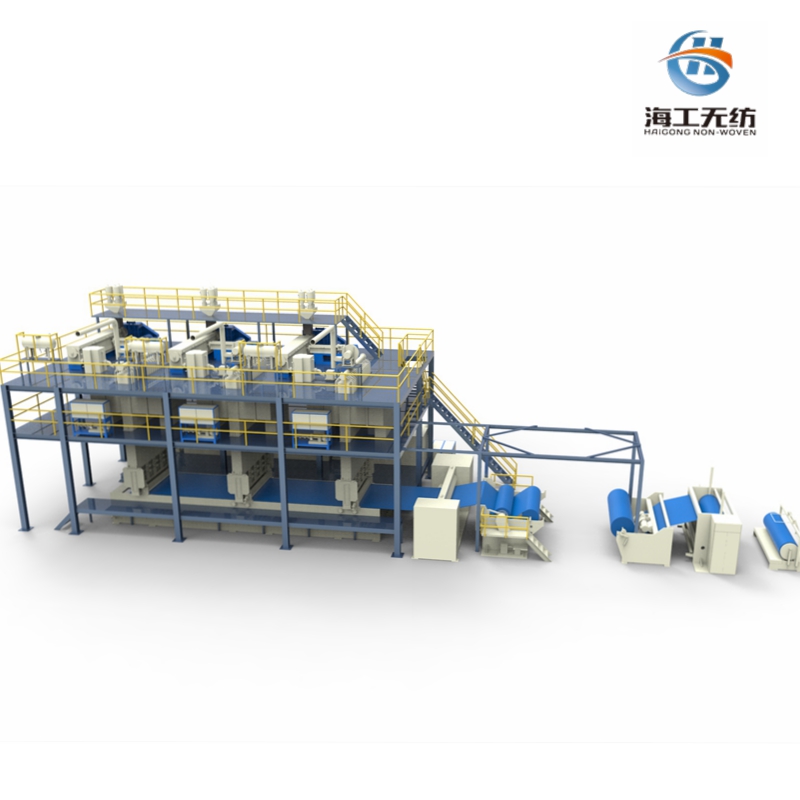

Production Line Overview

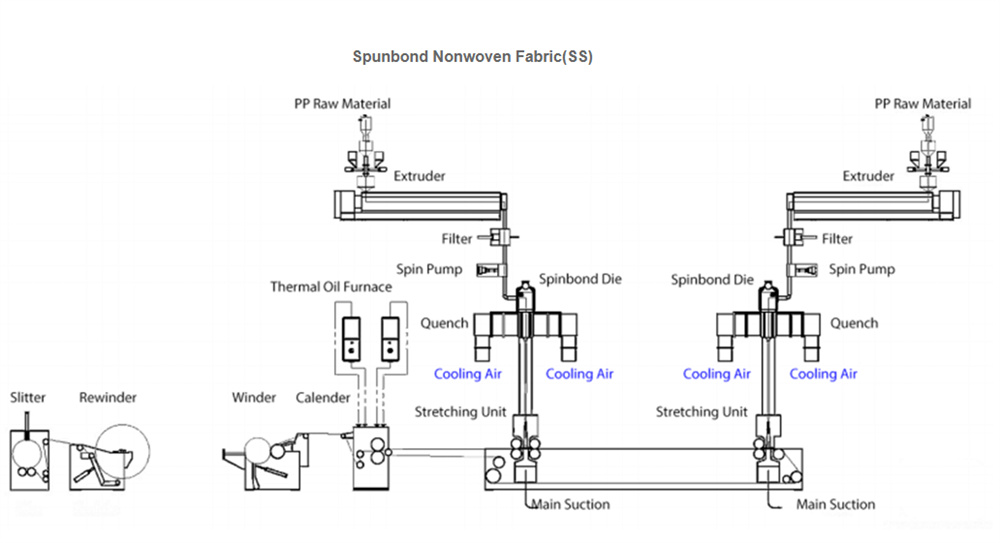

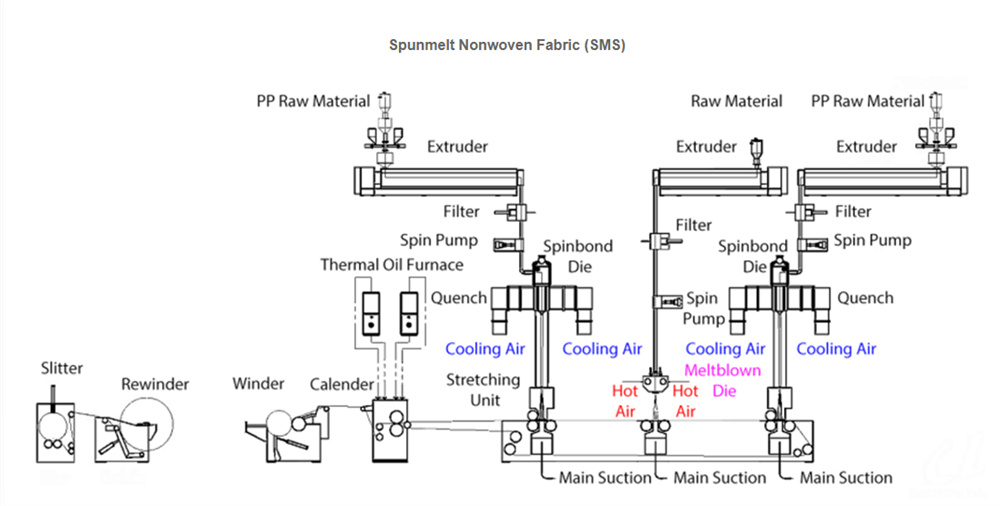

PP Raw Material→ Extrusion Machine→ Melt Filtration Machine→ Melt Pump→Spinning Machine→ Meltblown machine→Fiber Forming Machine→Thermal Bond→Nonwoven Fabric Rolls
The Advantage of HG Nonwoven Fabric Making Machines
1. High accurate raw material blender for raw material and additives;
2. High capacity extrusion machine with good screw and barrel;
2. High capacity extrusion machine with good screw and barrel;
3. High performance melt filtration system;
4. High Speed with high accurate melt pump;
5. Latest melt flow design and spinning system;
6. Well-know PLC control system and Siemens motors;
7. Smart operation program and monitoring system;
8. Imported Enka / Kasen spinneret and meltblown die;
MORE THAN A LINE: OUR KNOWLEDGE AND SERVICE
HG strong team will guarantee a quality service you will have all the way.
Sufficient and value information related to PP spun bond non woven fabric machine line
We maintain a working attitude to always think ahead of our customers.
We collect all information and share with our customers to let them know more in this industry.
Fast response speed in after-sale period
Our team will always give help no matter in our industry but also can help in any related machines when you run this business to give you best technical support!
