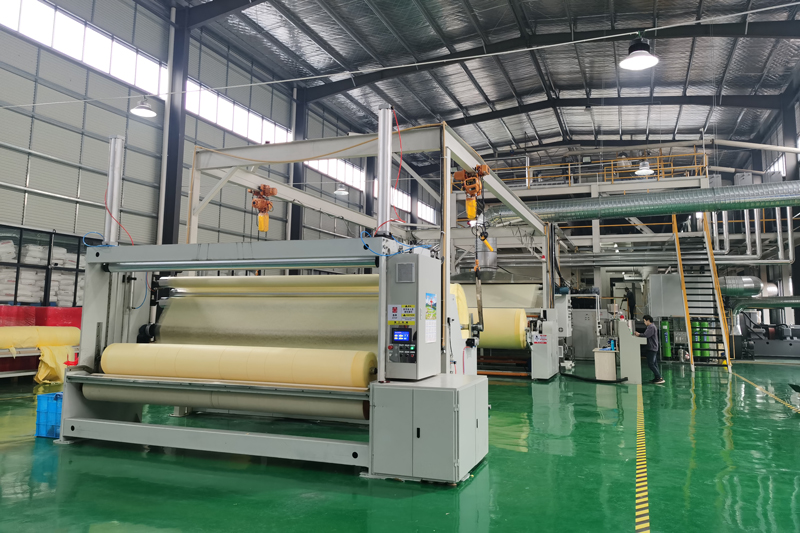

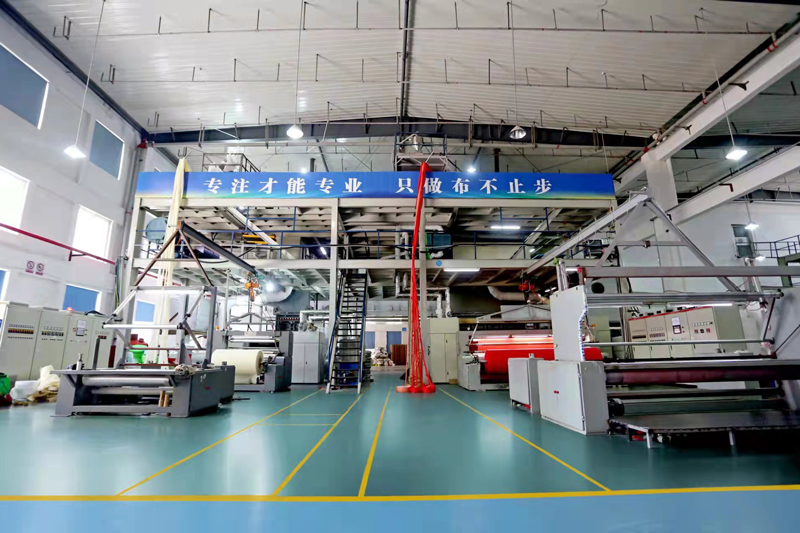

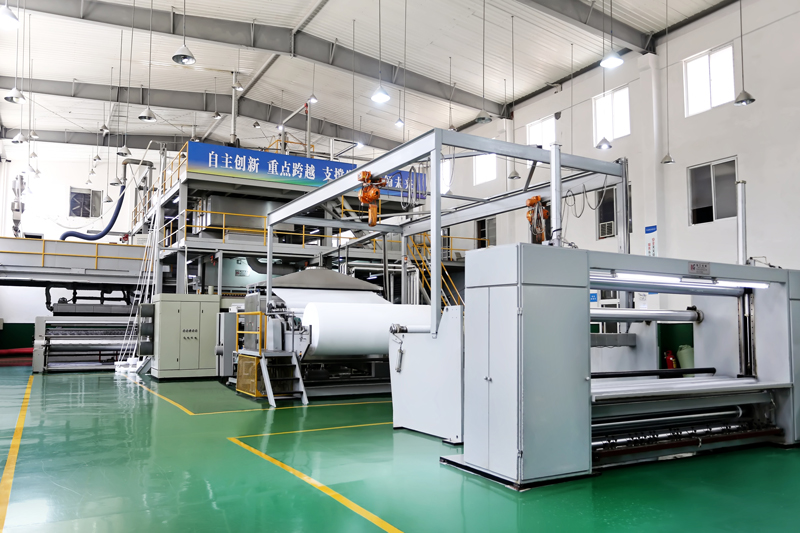

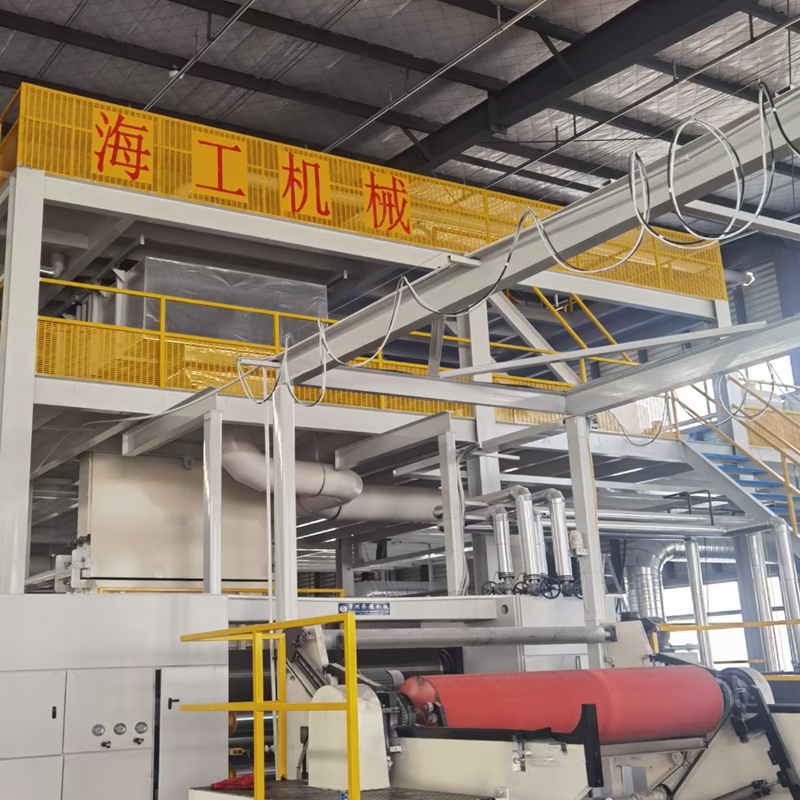

PP Spunbond Nonwoven Fabric Making Machine
Key Features and Technology
Our Spunbond nonwoven fabric making machine is engineered with the latest technology to ensure precision and efficiency. It utilizes the spunbond process, where polymer granules are melted and extruded through spinnerets, forming continuous filaments. These filaments are then laid randomly on a conveyor belt, bonded together by heat and pressure to create a nonwoven fabric with excellent tensile strength and uniformity.
● High Production Efficiency: The machine is designed for continuous operation, capable of producing large volumes of nonwoven fabric with minimal downtime. It is ideal for high-demand production environments.
● Advanced Control Systems: Equipped with an intelligent control system, operators can easily adjust production parameters, monitor quality, and optimize the process for different fabric specifications.
● Customization Options: The machine offers flexibility in terms of fabric width, thickness, and texture, allowing manufacturers to produce a wide range of products tailored to specific market needs.
Main technology process to better understand as below:
Raw material (polypropylene) blending and feeding -Melting and extrusion - Filtration - Metering- Spinning - Cooling with the Side Wind - Air drawing -Web forming - Thermal bonding - Winding and slitting -- Nonwoven fabric rolls

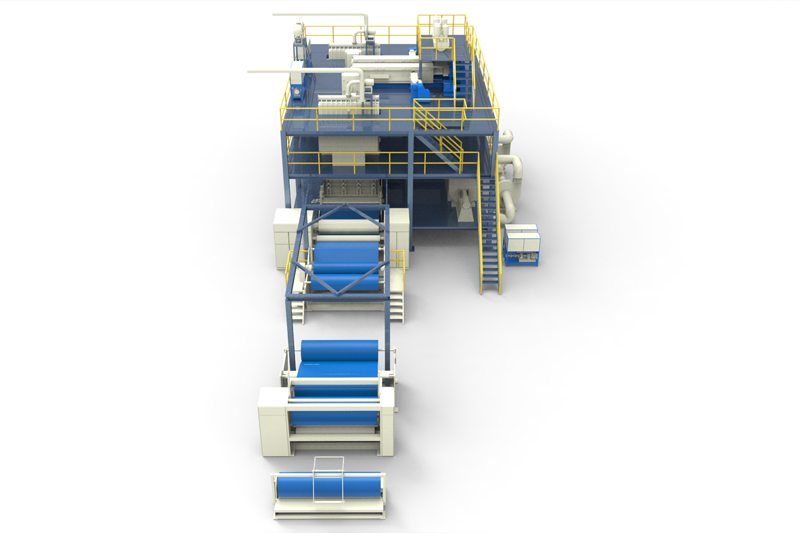

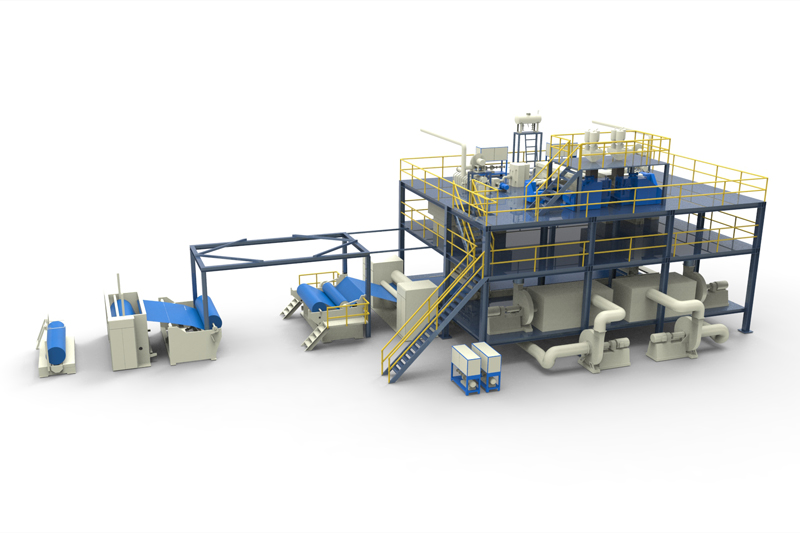

Main equipment of the spunbond nonwoven fabric production line
Polymer Extrusion: Polymers such as polypropylene (PP) are melted and extruded through spinnerets to form continuous filaments.
Fiber Formation: The filaments are then cooled and stretched to enhance their strength and flexibility.
Web Formation: The continuous filaments are laid down in a random or oriented pattern to form a web.
Bonding: The web is bonded through various methods such as thermal bonding, chemical bonding, or mechanical bonding to create a cohesive fabric.
Finishing: The final fabric may undergo additional processes such as dyeing, coating, or embossing to meet specific requirements.
Parameter of spunbond lines
| Model |
HG-1600mm |
HG-2400mm |
HG-3200mm |
| technology |
Spun bond non woven making |
||
| Spinning beam |
S/SS/SSS |
||
| Raw material |
Polypropylene |
||
| Output(ton) |
5/9/14ton |
7/13/18ton |
10/16/24ton |
| Speed (m/min) |
200/350/400 m/min |
||
| GSM range(g/sqm) |
10-200 g/sqm |
||
| Filament Denier |
1.6-2.0 denier |
||
Applications
The versatility of the spunbond nonwoven fabric making machine makes it suitable for producing fabrics used in various applications:
Hygiene: Diapers, sanitary napkins, and wipes.
Medical: Surgical gowns, masks, and drapes.
Agricultural: Crop protection fabrics and landscape fabrics.
Packaging: Nonwoven fabric shopping bags, garment bags, and laundry bags.
