Polypropylene Spunbonded Nonwoven Fabric Production Machine-1
What is Non woven fabric making machine?
The Spunbond nonwoven fabric manufacturing machine is a full production line that produces endless filaments using the latest spunbond spinning technology and polypropylene granules as the raw material. The primary equipment used in the production of Spunbond Nonwoven Fabric (S), one of the most widely used types of nonwoven fabric manufacturing devices, is the spunbond nonwoven machine, a continuous, integrated production line that produces a fabric web directly from polymer granules, such as polypropylene.
HG-1600S/2400S/3200S PP Spunbond Nonwoven Fabric Machine
-
Medical & Hygiene
-
Medical: Surgical gowns, masks, drapes, bed sheets, and sterile packaging.
-
Hygiene: Baby diapers, feminine care products, and adult incontinence pads.
-
-
Agriculture & Gardening
-
Crop covers, weed control fabrics, plant protection sheets, and greenhouse shading.
-
Soil stabilization mats, seedling bags, and landscape fabrics.
-
-
Packaging & Industrial
-
Shopping bags, protective wrapping, and durable packaging materials.
-
Furniture backing, insulation layers, and industrial wipes.
-

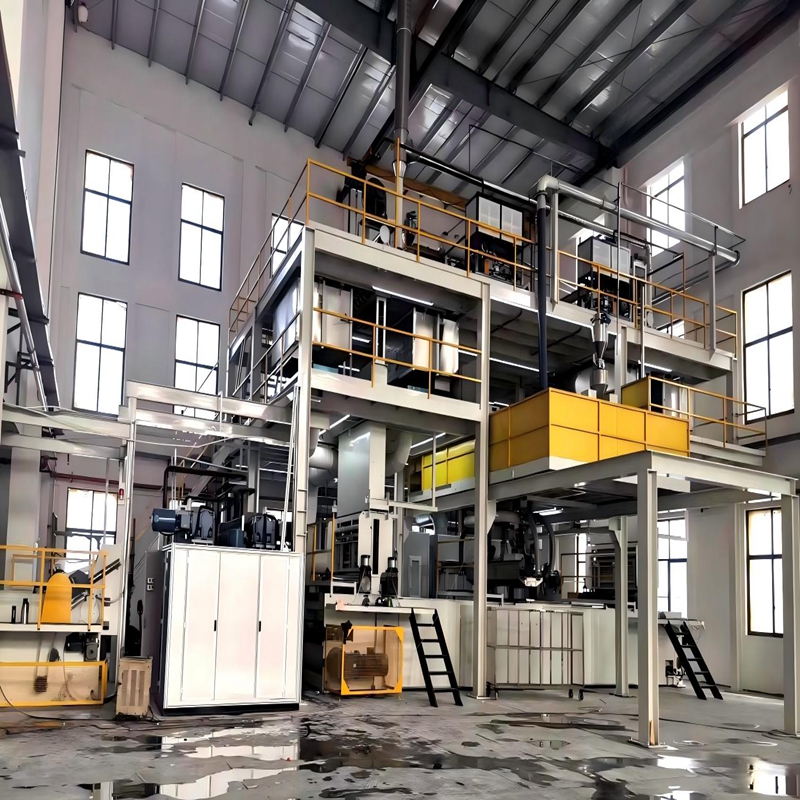

A typical spunbond machine is a long, integrated system with the following key zones:
PP chips &Additives (color masterbatch) are fed into the system. They are melted in the extruder using heated barrels and a rotating screw.
The melt pump provides precise, constant pressure to push the molten polymer forward, ensuring consistent filament thickness.
The molten polymer is forced through the spinneret—a metal plate with a lot of fine holes. This action forms continuous molten polymer filaments.
As the filaments exit the spinneret, cool air is blown across them in the quenching chamber to solidify them.The solidified filaments are then stretched (drawn) by high-speed air jets in the air drafter. This step is critical as it aligns the polymer molecules, increasing the filament's strength and reducing its diameter.
The high-velocity air from the drafter carries the filaments and randomly scatters them onto a moving, perforated forming belt. A suction unit underneath the belt pulls the air through, helping the filaments to lie down in a uniform, random web. The randomness is key to the fabric's isotropic strength (similar strength in all directions).
The finished fabric is automatically wound into large jumbo rolls. An inline slitter trims the edges and can slit the wide web into narrower rolls as required by the customer.
Why choose us
HG Nonwoven Machinery---Your Trustworthy Partner in Spunbond Nonwoven Machines
(Custom configurations available upon request.)
|
Model
|
HG-1600S
|
HG-2400S
|
HG-3200S
|
|
Production capacity (kgs)
|
40,000kgs
|
60,000kgs
|
100,000kgs
|
|
Power Consumption(kW)
|
250kW
|
350kW
|
450kW
|
|
Machine Width(mm)
|
1600mm
|
2400mm
|
3200mm
|
|
Max. Production Speed (m/minute)
|
200m
|
200m
|
200m
|
|
Nonwoven fabric Thickness(GSM)
|
10-200grams/square meter
|
10-200grams/square meter
|
10-200grams/square meter
|
|
Production line dimension(L*W*H)
|
20*8*11m
|
20*10*11m
|
20*12*12m
|
Pujiang HG Nonwoven Machinery Co., Ltd.
HG Nonwoven is a leading nonwoven fabric making machine manufacturer over 20 years. We export to 20+ countries, offering reliable nonwoven fabric production lines 300+
Located in Yiwu, Pujaing HG Nonwoven Macinery is one well-known non woven fabric machine manufacturer in China, which specializes in manufacturing all types of PP/PET/PLA spun bond and melt blown non woven fabric making machine such as S/SS/SSS/SMS/SMMS/SSMMS include turn-key project service. Our non woven machines focus on producing high performance, eco-friendly and biodegradable non woven fabric materials.
As one of reliable non woven machine supplier, we are always the trustworthy choices for all customers. More than 300+ non woven fabric production lines are running well and also export to 20+ countries and regions which made HG team famous and won the good reputation. Our company introduced advanced design(5th Generation spunbond spinning technology) concept from overseas, and integrate with autonomy for the needs of the market. So HG nonwoven fabric making machines are characterized by convenient operation, small area, low power consumption, high efficiency and low production cost.
Our company regards "high quality, good service" as our tenet. We enable our customers worldwide to produce non woven fabrics economically, reliably and sustainability.
Focus on nonwoven fabric maing machines manufacturing
Support nonwoven market analysis and feasibility report
Provide One-Stop turn key project engineering solution from A to
Guarantee high efficient on-site maintenance service
