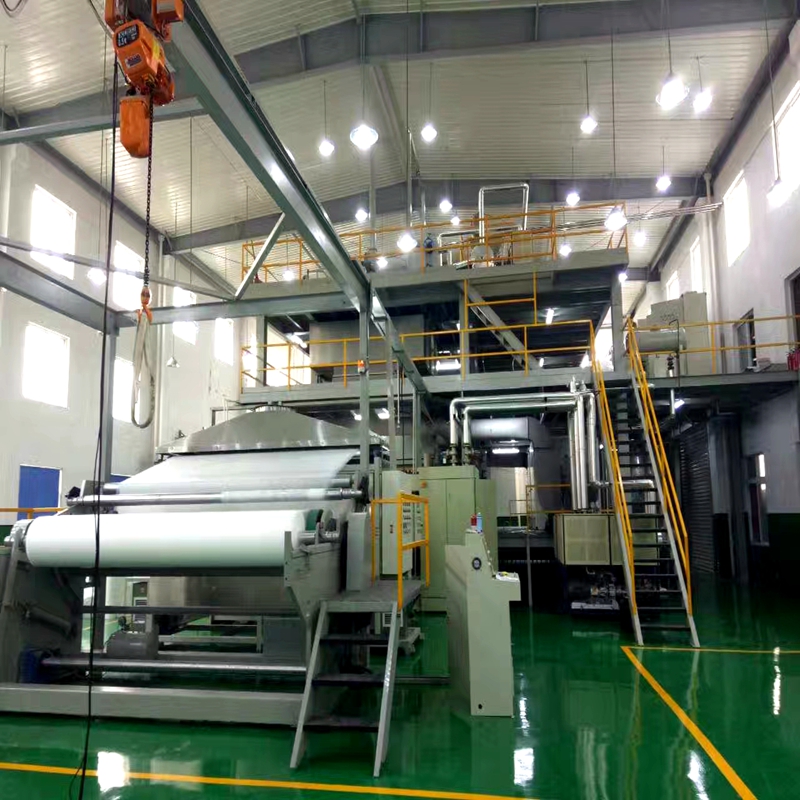

2400mm S Spunbond Nonwoven Fabric Making Machine Hg-1600/2400/3200
What is Non woven fabric making machine?
A non-woven fabric making machine is not a single machine, but a complete production line that transforms raw material polypropylene directly into a nonwoven fabric using the latest spunbond spinning technology.
The primary equipment used in the production of Spunbond Nonwoven Fabric (S), one of the most widely used types of nonwoven fabric manufacturing devices, is the spunbond nonwoven machine. It is a process that includes extrusion of polymers to form continuous filaments, which will be later conditioned, stretched and deposited onto a conveyor belt to create the web, then will be embossed and winded into spunbond nonwoven fabric rolls.
Production Process
A typical spunbond machine is a long, integrated system with the following key zones:
PP chips &Additives (color masterbatch) are fed into the system. They are melted in the extruder using heated barrels and a rotating screw.
The melt pump provides precise, constant pressure to push the molten polymer forward, ensuring consistent filament thickness.
The molten polymer is forced through the spinneret—a metal plate with a lot of fine holes. This action forms continuous molten polymer filaments.
As the filaments exit the spinneret, cool air is blown across them in the quenching chamber to solidify them.The solidified filaments are then stretched (drawn) by high-speed air jets in the air drafter. This step is critical as it aligns the polymer molecules, increasing the filament's strength and reducing its diameter.
4. Web Formation & Suction Unit:
5. Thermal Bonding (Calender bonding):
The web passes through heated steel rollers (calenders). One or both rollers are engraved with a pattern (e.g., points, diamonds). Under heat and pressure, the filaments fuse together at these contact points. This produces a thin, strong, and relatively flat spunbond nonwoven fabric.
6. Winding & Slitter.
-
Medical & Hygiene
-
Medical: Surgical gowns, masks, drapes, bed sheets, and sterile packaging.
-
Hygiene: Baby diapers, feminine care products, and adult incontinence pads.
-
-
Agriculture & Gardening
-
Crop covers, weed control fabrics, plant protection sheets, and greenhouse shading.
-
Soil stabilization mats, seedling bags, and landscape fabrics.
-
-
Packaging & Industrial
-
Shopping bags, protective wrapping, and durable packaging materials.
-
Furniture backing, insulation layers, and industrial wipes.
-
The Advantage of HG Nonwoven Fabric Making Machines:
1.High accurate raw material blender for polyproplyene and additives;
2.High capacity extrusion machine with good screw and barrel;
3.High performance melt filtration system;
4.High Speed with high accurate melt pump;
5.Lastest melt flow design and spinning system;
6.Well-know PLC control system and motors; 7.Smart operation program and monitoring syustem;
(Custom configurations available upon request.)
|
Model |
HG-1600mm |
HG-2400mm |
HG-3200mm |
|
technology |
Spun bond non woven making |
||
|
Spinning beam |
S/SS/SSS |
||
|
Raw material |
Polypropylene |
||
|
Output(ton) |
5/9/14ton |
7/13/18ton |
10/16/24ton |
|
Speed (m/min) |
200/350/400 m/min |
||
|
GSM range(g/sqm) |
10-200 g/sqm |
||
|
Filament Denier |
1.6-2.0 denier |
||
Pujiang HG Nonwoven Machinery Co., Ltd.
HG Nonwoven is a leading nonwoven fabric making machine manufacturer over 20 years. We export to 20+ countries, offering reliable nonwoven fabric production lines 300+
Located in Yiwu, Pujaing HG Nonwoven Macinery is one well-known non woven fabric machine manufacturer in China, which specializes in manufacturing all types of PP/PET/PLA spun bond and melt blown non woven fabric making machine such as S/SS/SSS/SMS/SMMS/SSMMS include turn-key project service. Our non woven machines focus on producing high performance, eco-friendly and biodegradable non woven fabric materials.
As one of reliable non woven machine supplier, we are always the trustworthy choices for all customers. More than 300+ non woven fabric production lines are running well and also export to 20+ countries and regions which made HG team famous and won the good reputation. Our company introduced advanced design(5th Generation spunbond spinning technology) concept from overseas, and integrate with autonomy for the needs of the market. So HG nonwoven fabric making machines are characterized by convenient operation, small area, low power consumption, high efficiency and low production cost.
Our company regards "high quality, good service" as our tenet. We enable our customers worldwide to produce non woven fabrics economically, reliably and sustainability.
