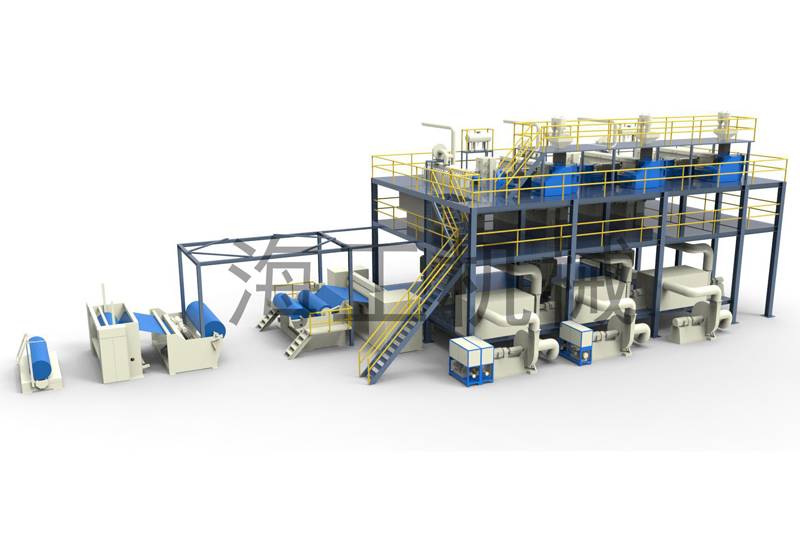

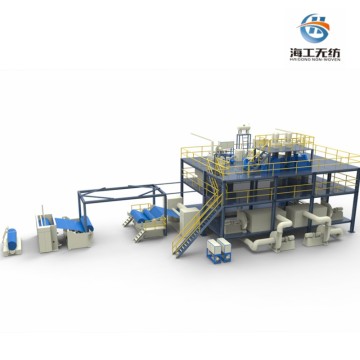

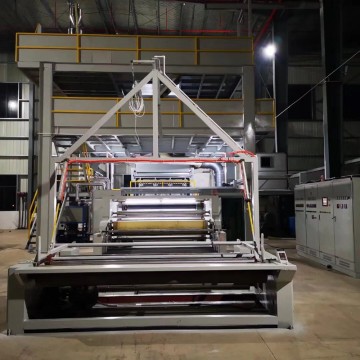

HG-SS Spunbond Nonwoven Fabric Making Machine
HG-SS Series Spunbond Nonwoven Fabric Making Machine Technical Specification
| Model | Effective Width | Fabric GSM | Machine Speed | Capacity |

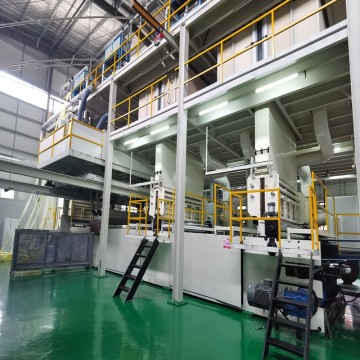

| HG-1600SS | 1600mm | 10-100gsm | 350m/min | 9 Ton/Day |
| HG-2400SS | 2400mm | 10-100gsm | 350m/min | 13 Ton/Day |
| HG-3200SS | 3200mm | 10-100gsm | 350m/min | 16 Ton/Day |
Raw material is PP chips;
Customerization can be acceptable.

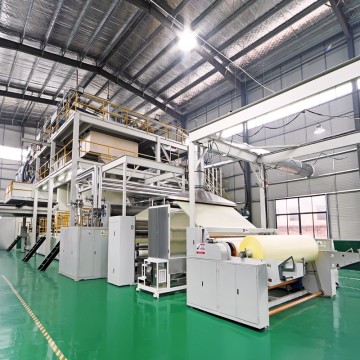

Production Line Overview
PP Raw Material→ 2 Extrusion Machine→2 Melt Filtration Machine→2 Melt Pump→ 2 Spinning Machine→Fiber Forming Machine→Thermal Bond→Nonwoven Fabric Rolls
The Advantage of HG Nonwoven Fabric Making Machines
1. High accurate raw material blender for raw material and additives;
2. High capacity extrusion machine with good screw and barrel;
3. High performance melt filtration system;
4. High Speed with high accurate melt pump;
5. Latest melt flow design and spinning system;
6. Well-know PLC control system and Siemens motors;
7. Smart operation program and monitoring system;
8. Imported Enka / Kasen spinneret and meltblown die;
Tips: characteristic of SS non woven fabric
SS nonwoven fabric (Spunbond + Spunbond) is a type of fabric made by bonding together fibers using a spunbond process, which involves extruding melted plastic into fine filaments that are laid into a web and then bonded together. Here are some key characteristics of SS nonwoven fabric:
1. High Strength
The double spunbond layers provide excellent tensile strength, making SS nonwoven fabric durable and resistant to tearing or stretching.
2. Softness
Despite its strength, SS nonwoven fabric is soft and gentle, making it suitable for use in products like disposable hygiene items (e.g., diapers, sanitary napkins) and medical applications.
3. Lightweight
SS nonwoven fabric is lightweight, making it easy to handle and ideal for applications that require both strength and low weight.
4. Breathability
It allows air to pass through easily, making it breathable, which is important for hygiene and medical products that need ventilation and comfort.
5. Water Resistance or Absorbency
Depending on the treatment, SS nonwoven fabric can be made either water-resistant (hydrophobic) or absorbent (hydrophilic), making it versatile for various uses such as in surgical gowns, diapers, or packaging.
6. Eco-friendly
Made from polypropylene, SS nonwoven fabric is recyclable and can be produced with minimal environmental impact. It is often used in single-use applications but can be disposed of in an eco-friendly manner.
7. Good Uniformity
SS nonwoven fabric has excellent fabric uniformity due to the double spunbond layers, providing consistent thickness and texture, which is essential for product quality.
These properties make SS nonwoven fabric suitable for applications such as medical gowns, face masks, baby diapers, sanitary napkins, packaging materials, and agricultural covers.
